Computational Materials Science Group

Frigyes Podmaniczky¹, László Gránásy^1,2

¹Institute for Solid State Physics and Optics, Wigner Research Centre for Physics, P.O. Box 49, Budapest H-1525, Hungary
²BCAST, Brunel University, Uxbridge, Middlesex, UB8 3PH, United Kingdom

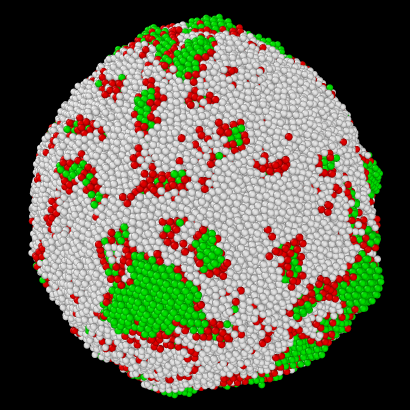

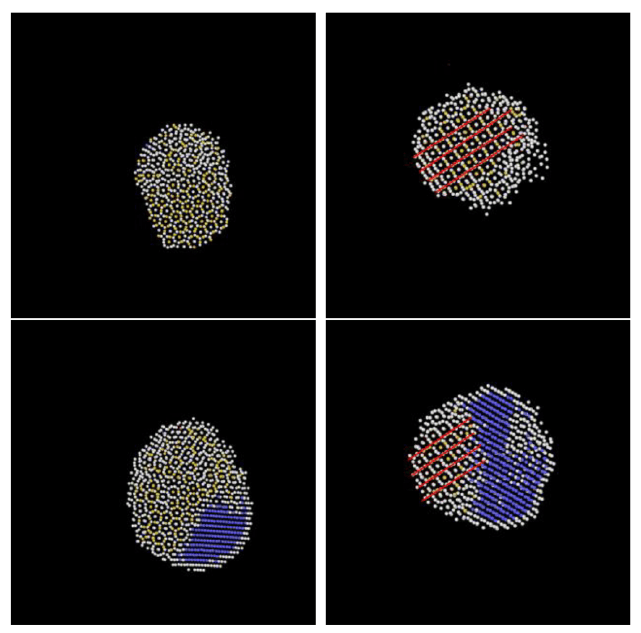

Two-step nucleation and subsequent growth processes were investigated in the framework of the single mode phase-field crystal model combined with diffusive dynamics (corresponding to colloid suspensions) and hydrodynamical density relaxation (simple liquids). It is found that independently of dynamics, nucleation starts with the formation of solid precursor clusters that consist of domains with noncrystalline ordering (ringlike projections are seen from certain angles), and regions that have amorphous structure. Using the average bond order parameter q¯6, we distinguished amorphous, medium range crystallike order (MRCO), and crystalline local orders. We show that crystallization to the stable body-centered cubic phase is preceded by the formation of a mixture of amorphous and MRCO structures. We have determined the time dependence of the phase composition of the forming solid state. We also investigated the time/size dependence of the growth rate for solidification. The bond order analysis indicates similar structural transitions during solidification in the case of diffusive and hydrodynamic density relaxation.

R. Zanella, G. Tegze, R. Le Tellier, H. Henry

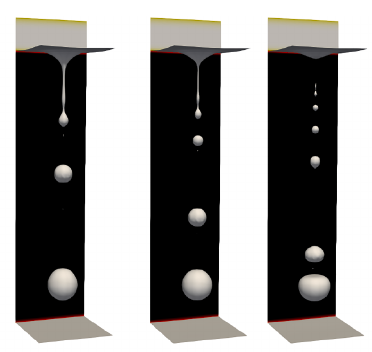

We report on two- and three-dimensional numerical simulations of Rayleigh–Taylor instabilities in immiscible fluids. A diffuse-interface model that combines the Cahn–Hilliard equation, governing the evolution of the volume fraction of one fluid, and the Navier–Stokes equations, governing the bulk velocity and pressure, is used. The study is limited to low Atwood numbers owing to the use of the Boussinesq approximation. The code is based on a pseudo-spectral method. A linear analysis is first performed in a two-dimensional case of Rayleigh–Taylor instability to confirm that the model very well captures this phenomenon in the case of inviscid or viscid fluids. One key aspect of this work is that the influence of the thermodynamic parameters related to the Cahn–Hilliard equation (interface thickness and mobility) is quantitively studied. Three-dimensional results of Rayleigh–Taylor instabilities in viscous fluids are then presented to show the possibilities of this modeling. We observe the effect of the viscosity and the wavelength of an initial single-mode perturbation on the mass transport during the nonlinear regime.

Chang-Yu Sun, László Gránásy^1,2, Cayla Stifler, Tal Zaquin, Rajesh Chopdekar, Nobumichi Tamura, James Weaver, Jun Zhang, Stefano Goffredo, Giuseppe Falini, Matthew Marcus, Tamás Pusztai¹, Vanessa Schoeppler³, Tali Mass, Pupa Gilbert

¹Institute for Solid State Physics and Optics, Wigner Research Centre for Physics, P.O. Box 49, Budapest H-1525, Hungary
²BCAST, Brunel University, Uxbridge, Middlesex, UB8 3PH, United Kingdom
³B CUBE - Center for Molecular Bioengineering, Technische Universität Dresden, Germany

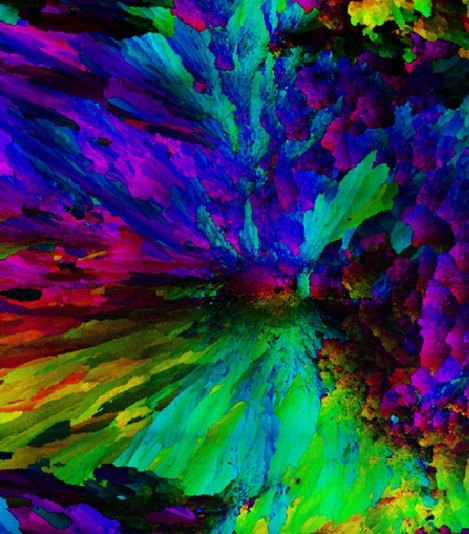

Spherulites are radial distributions of acicular crystals, common in biogenic, geologic, and synthetic systems, yet exactly how spherulitic crystals nucleate and grow is still poorly understood. To investigate these processes in more detail, we chose scleractinian corals as a model system, because they are well known to form their skeletons from aragonite (CaCO3) spherulites, and because a comparative study of crystal structures across coral species has not been performed previously. We observed that all 12 diverse coral species analyzed here exhibit plumose spherulites in their skeletons, with well-defined centers of calcification (CoCs), and crystalline fibers radiating from them. In 7 of the 12 species, we observed a skeletal structural motif not observed previously: randomly oriented, equant crystals, which we termed “sprinkles”. In Acropora pharaonis, these sprinkles are localized at the CoCs, while in 6 other species, sprinkles are either layered at the growth front (GF) of the spherulites, or randomly distributed. At the nano- and micro-scale, coral skeletons fill space as much as single crystals of aragonite. Based on these observations, we tentatively propose a spherulite formation mechanism in which growth front nucleation (GFN) of randomly oriented sprinkles, competition for space, and coarsening produce spherulites, rather than the previously assumed slightly misoriented nucleations termed “non-crystallographic branching”. Phase-field simulations support this mechanism, and, using a minimal set of thermodynamic parameters, are able to reproduce all of the microstructural variation observed experimentally in all of the investigated coral skeletons. Beyond coral skeletons, other spherulitic systems, from aspirin to semicrystalline polymers and chocolate, may also form according to the mechanism for spherulite formation proposed here.

László Rátkai¹, Tamás Pusztai¹, László Gránásy^1,2

¹Institute for Solid State Physics and Optics, Wigner Research Centre for Physics, P.O. Box 49, Budapest H-1525, Hungary
²BCAST, Brunel University, Uxbridge, Middlesex, UB8 3PH, United Kingdom

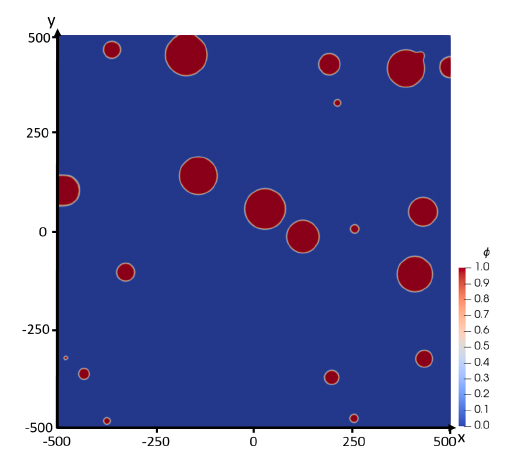

The phase-field and lattice Boltzmann methods have been combined to simulate the growth of solid particles moving in melt flow. To handle mobile particles, an overlapping multigrid scheme was developed, in which each individual particle has its own moving grid, with local fields attached to it. Using this approach we were able to simulate simultaneous binary solidification, solute diffusion, melt flow, solid motion, the effect of gravity, and collision of the particles. The method has been applied for describing two possible modes of columnar to equiaxed transition in the Al–Ti system.
